Installing The Oracle BI Mobile App Designer

Posted by KPI Partners News Team on Tue, Oct 29, 2013 @ 08:37 AM

by Shiva Molabanti

Prerequisites:

  • OBIEE 11.1.1.7.1 (If your version of Oracle BI EE is not 11.1.1.7.1, download Patch 16556157: OBIEE BUNDLE PATCH 11.1.1.7.1 from My Oracle Support).
  • To support Oracle BI Mobile App Designer with Oracle BI Web Catalog, Apply OBIEE 11.1.1.7.1 MLR Patch 17004920.
  • Download Oracle BI Mobile App Designer Patch 17220944 from My Oracle Support.

Installation Steps:

  1. Stop All OBIEE 11G services (Weblogic Admin Server, Managed Server and OPMN services).
  2. Apply OBIEE 11.1.1.7.1 MLR Patch 17004920 using OPatch Utility.
  3. Apply Oracle BI Mobile App designer Patch 17220944 using OPatch Utility.
  4. Deploy the Oracle BI Mobile App Designer (MAD) manually using Weblogic Configuration Assistant as shown below.
  5. Open Command prompt window and Navigate to: <MW_HOME>\Oracle_BI1\common\bin
  6. Run "config.bat" to start the WebLogic Configuration Assistant Tool.

Molabanti_Shiva_2013_09_05_OBIMobileAppDesignerInstallation_Image_1

On welcome screen, select ‘"Extend an existing WebLogic domain" and click "Next."

Molabanti_Shiva_2013_09_05_OBIMobileAppDesignerInstallation_Image_2

Choose the domain to extend, for example:"bifoundation_domain"

Molabanti_Shiva_2013_09_05_OBIMobileAppDesignerInstallation_Image_3

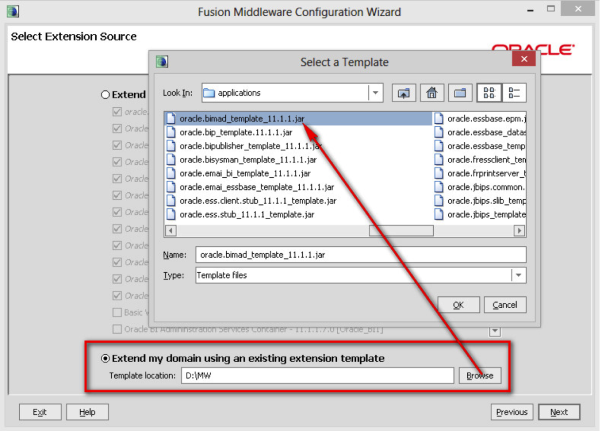

Choose "Extend my domain using an existing extension template" and set the template location to: <MW_HOME>/Oracle_BI1/common/templates/applications/oracle.bimad_template_11.1.1.jar

Molabanti_Shiva_2013_09_05_OBIMobileAppDesignerInstallation_Image_4

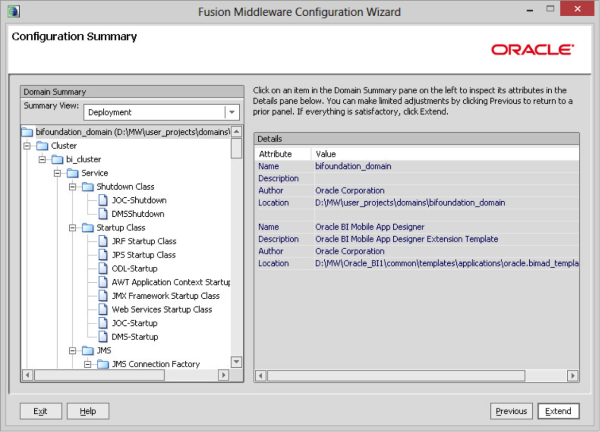

On "Configuration Summary," review the deployment details and click the “Extend” button.

Molabanti_Shiva_2013_09_05_OBIMobileAppDesignerInstallation_Image_5

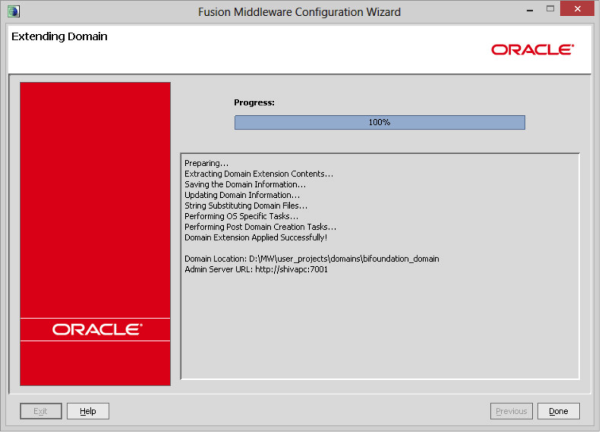

Upon successful configuration, you will see the following screen. Click “Done” to close this window.

Molabanti_Shiva_2013_09_05_OBIMobileAppDesignerInstallation_Image_6

This concludes the Oracle BI MAD application deployment in our OBIEE 11G application. Now we need to update the Security Configurations for OBI MAD. This is a mandatory step to use OBI MAD in OBIEE 11G Presentation Services.

Update Security Configuration for Oracle BI Mobile App Designer:

This is a Python script to update the OBIEE 11G domain (bifoundation_domain) system JAZN file (system-jazn-data.xml) with the security grants required for BI Mobile App Designer. This step is required only the first time you apply the patch.

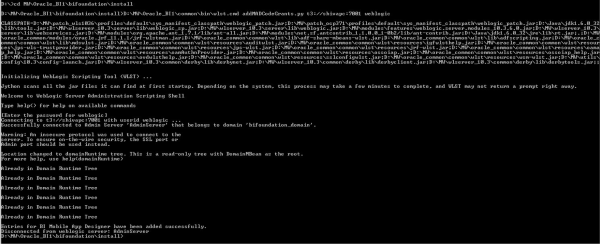

Navigate to <MW_HOME>\Oracle_BI1\bifoundation\install and run the command: <MW_HOME>\Oracle_BI1\common\bin\wlst.cmd   addMADCodeGrants.py   t3://<hostname>:7001   <weblogic_Admin_Username>

For example: D:\MW\Oracle_BI1\common\bin\wlst.cmd addMADCodeGrants.py t3://shivapc:7001 weblogic

Molabanti_Shiva_2013_09_05_OBIMobileAppDesignerInstallation_Image_7

After successful execution, Start All OBIEE 11G Services (Weblogic Admin, Managed servers and OPMN).

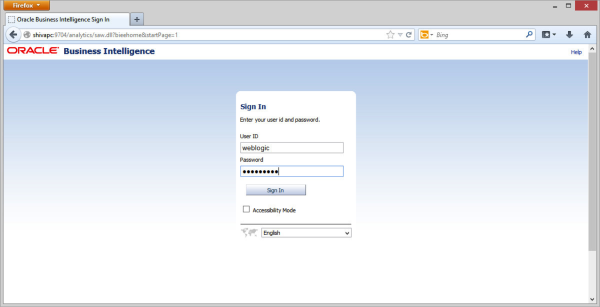

Once the services are started, Login to OBIEE 11G Analytics (http://hostname:9704/analytics).

Molabanti_Shiva_2013_09_05_OBIMobileAppDesignerInstallation_Image_8

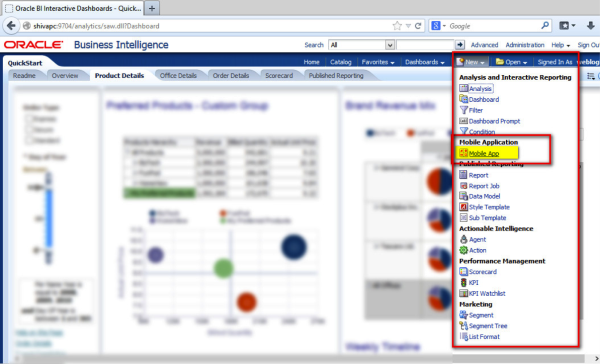

Login to OBIEE 11G and click the "New" Menu. In this you will see a new application category called “Mobile Application” and you will see the “Mobile App” module. Click on that to start designing and developing the reports.

Molabanti_Shiva_2013_09_05_OBIMobileAppDesignerInstallation_Image_9
